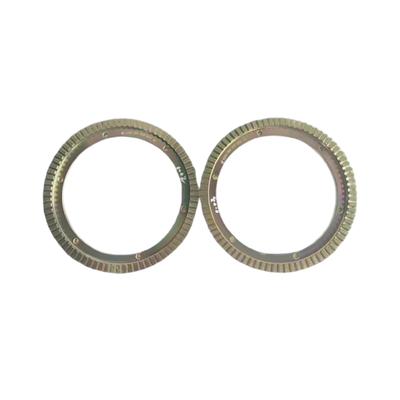

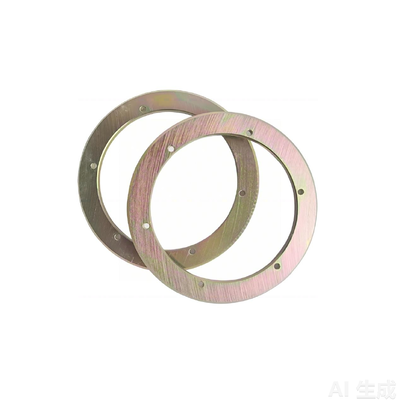

Higer Bus ABS Ring Gear Tone Wheel Speed Sensor Ring 96 Teeth Steel Anti Rust

Higer Bus ABS Ring Gear - 96 Teeth Speed Sensor Tone Wheel

ABS ring gear (tone wheel) for Higer city buses and coaches. The ring is press-fitted on the wheel hub or transmission output flange and generates the pulse signal read by the ABS wheel speed sensor. A worn or cracked ring causes ABS warning lights, false wheel speed faults and loss of ABS and EBS function, so replacing it with a correctly toothed ring restores accurate wheel speed signals.

Product Highlights

• 96 teeth pulse ring - correct tooth count for the Higer ABS sensor air gap
• Hardened carbon steel - induction hardened teeth resist deformation and tooth wear
• Stable signal output - machined tooth profile keeps the air gap consistent at every wheel position
• Anti-rust surface treatment - oil coated or zinc plated for humid and coastal service
• Interference fit mounting - pressed on the hub seat without welding or modification
• Balanced ring body - no vibration or runout added to the hub assembly

Technical Specifications

Fault Signs of a Worn ABS Ring

• ABS or EBS warning lamp stays on after start-up
• Intermittent wheel speed fault codes on one wheel position
• Cracked, chipped or rusted teeth found during hub inspection
• ABS cycling at low speed when no wheel is actually slipping

Installation Notes

1. Remove the hub or flange and clean the ring seat of rust and old retaining compound.
2. Heat the new ring evenly if required and press it square onto the seat, never hammer it on.
3. Check the air gap between the ring teeth and the speed sensor before refitting the wheel.
4. Road test and confirm the ABS lamp clears and no wheel speed fault returns.

Packing and Supply

Each ring is oil coated, wrapped in anti-rust paper and packed in an export-grade carton. Neutral packing and mixed container loading with other Higer, Yutong, Zhongtong and King Long bus parts are available.

Order Support

Send us the hub photo, tooth count and vehicle model and we will confirm the matching ring, price and shipping schedule within one working day.
