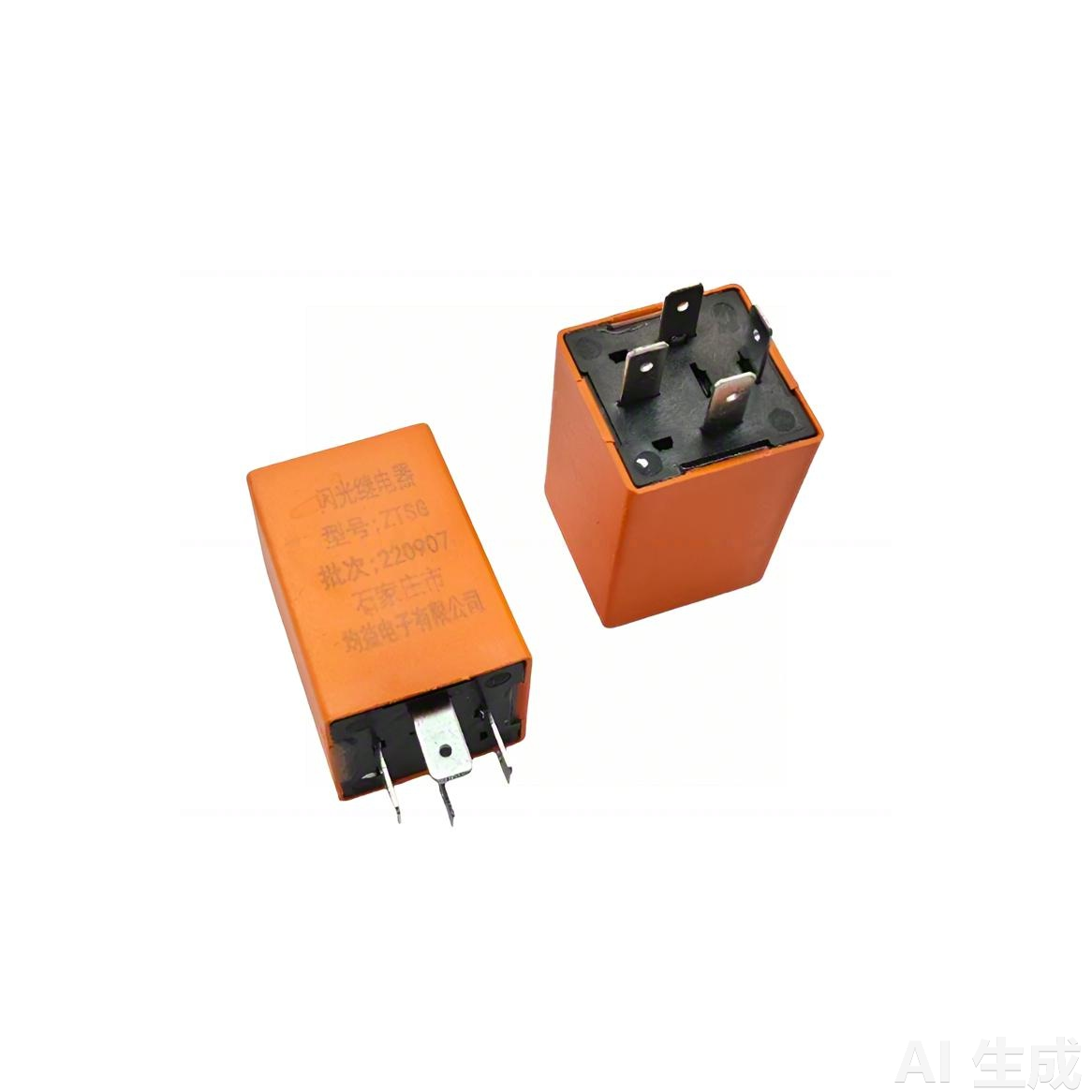

ZTSG Flasher Relay - SG996 Replacement, 24V 180W

Flasher relay for Zhongtong buses and coaches, current part number ZTSG and an exact replacement for the earlier SG996 unit. The relay drives the turn signal and hazard lamp circuits and produces the regulated on and off pulse that makes the lamps flash. It plugs into the original relay socket, so a failed flasher is a straight swap without cutting into the harness.

Product Highlights

• ZTSG current number, SG996 compatible - direct replacement for the superseded relay
• 24V / 180W rating - sized for the full bulb load of a bus turn signal circuit
• Stable flash rate - electronic timing that does not drift with temperature or battery voltage
• Turn signal and hazard function - one relay covers both indicator circuits
• Plug in terminal base - fits the original relay socket in the junction box
• Sealed housing - protects the contact set from dust and moisture in the dash area

Technical Specifications

Fault Signs of a Failed Flasher Relay

• Indicators light up but do not flash, or stay on continuously
• Flash rate much faster or slower than normal on both sides
• Hazard lamps work but turn signals do not, or the reverse
• Clicking noise from the relay with no lamp response
• Burnt smell or discoloured relay case in the junction box

Installation Notes

1. Switch off the battery master before touching the relay socket.
2. Locate the flasher relay in the central junction box and pull it straight out of the socket.
3. Check the socket pins for corrosion and bend them back into shape if needed.
4. Push the new relay fully into the socket and test both turn signal and hazard functions.
5. If the flash rate is wrong after fitting, check the bulb wattage and earth points before assuming a relay fault.

Packing and Supply

Relays are packed individually in poly bags and supplied in export cartons, with neutral packing and mixed container loading available for wholesale orders.

Order Support

Send us a photo of the original relay with the pin layout, and we will confirm the matching version and price within one working day.
